Turbo Levo MY22 - Modellpalette nach unten erweitert
Zu den schon länger auf die Räder gesetzten S-Works, Pro und Expert wurden im Dezember 21 drei neue Modelle der neuen Levo-Baureihe vorgestellt. Sie runden die Modellpalette nach unten ab.
Das Levo Comp rollt mit einem Carbon-Rahmen und der neuen MasterMind-TCU mit integriertem Display auf die Trails.
Das Levo Comp Alloy kommt, wie der Name schon sagt, mit einem Alu-Rahmen. Der hat die gleichen Geometriedaten wie die Carbon Brüder. Als Control-Einheit wird hier aber die herkömmliche TCU mit den LEDs verbaut.
Das Levo Alloy kommt auch mit der normalen TCU und einfacheren Komponeneten.
Die Preise der 3 neuen Modelle liegen deutlich unter denen der Spitzenmodelle.
Levo Comp - Spezifikationen / Preis 8.200 Euro
Cockpit
VORBAU Alloy Trail Stem, 35mm bar bore
LENKER Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
LENKERBAND Specialized Trail Grips
SATTEL Bridge Comp, Hollow Cr-mo rails, 155/143mm
SATTELSTÜTZE X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
Bremsen
BREMSE HINTEN SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
BREMSE VORNE SRAM Code RS, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm
Antrieb
SCHALTWERK SRAM GX Eagle, 12-speed
SCHALTHEBEL SRAM GX Eagle, 12-speed
KASSETTE SRAM XG-1275, 12-speed, 10-52t
KETTE SRAM NX Eagle, 12-speed
KURBELGARNITUR Praxis forged M30, custom offset, 160mm
KETTENBLÄTTER SRAM X-Sync Eagle, 104 BCD, 32T, steel
Laufräder
FELGEN Specialized 29, hookless alloy, 30mm inner width, tubeless ready
VORDERRADNABE Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
SPEICHEN DT Swiss Industry
SCHLÄUCHE Standard, Presta Valve
HINTERRADNABE Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
VORDERREIFEN Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
HINTERREIFEN Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Rahmenset
RAHMEN
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
GABEL FOX FLOAT 36 RHYTHM 29, GRIP damper, 44mm offset, 2-position sweep adjust, 15x110mm, 1.5" tapered steerer, 160mm travel
E-BIKE
MOTOR Specialized Turbo Full Power System 2.2 Motor
LADEGERÄT Custom charger, 42V4A w/ Rosenberger plug
DISPLAY Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
AKKU Specialized M3-700, Integrated battery, 700Wh
DÄMPFER S1: Fox Float DPS Performance Elite, 3- position adjustment, 52.5x210mm, Rx Trail Tune, S2-S6: FOX FLOAT X2 Performance Elite, LSC, LSR, 2-position lever, 55x210mm
Accessories
SWAT SWAT CC steerer tube integrated tool with chain tool and link

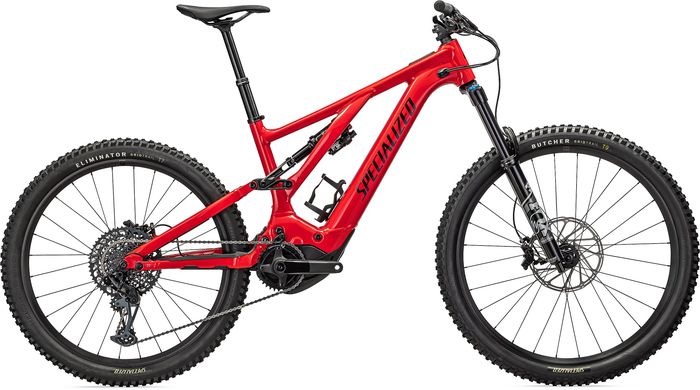

Levo Comp Alloy - Preis 7.000 Euro
Cockpit
VORBAU Alloy Trail Stem, 35mm bar bore
LENKER Alloy, 35mm diameter, 780mm width, 8-degree backsweep, 6-degree upsweep
LENKERBAND Specialized Trail Grips
SATTEL Bridge Comp, Hollow Cr-mo rails, 155/143mm
SATTELSTÜTZE X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
Antrieb
SCHALTWERK SRAM GX Eagle, 12-speed
SCHALTHEBEL SRAM GX Eagle, 12-speed
KASSETTE SRAM XG-1275, 12-speed, 10-52t
KETTE SRAM NX Eagle, 12-speed
KURBELGARNITUR Praxis forged M30, custom offset, 160mm
KETTENBLÄTTER SRAM X-Sync Eagle, 104 BCD, 32T, steel
Laufräder
FELGEN Specialized 29, hookless alloy, 30mm inner width, tubeless ready
VORDERRADNABE Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
SPEICHEN DT Swiss Industry
SCHLÄUCHE Standard, Presta Valve
HINTERRADNABE Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
VORDERREIFEN Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
HINTERREIFEN Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Rahmenset
RAHMEN
Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
GABEL Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel
E-BIKE
MOTOR Specialized Turbo Full Power System 2.2 Motor
DISPLAY Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
LADEGERÄT Custom charger, 42V4A w/ Rosenberger plug
AKKU Specialized M3-700, Integrated battery, 700Wh
Fahrwerk

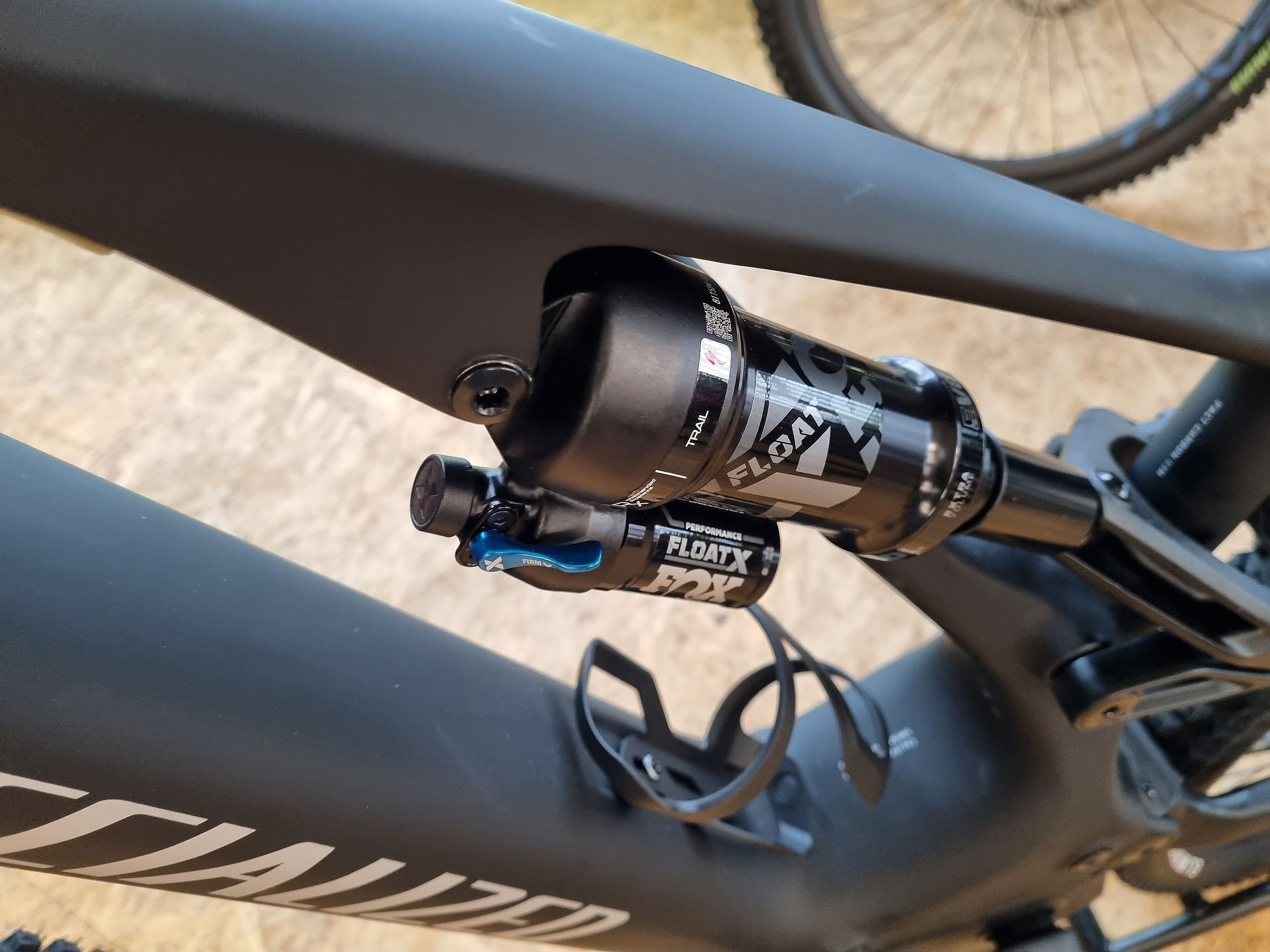

DÄMPFER S1: FOX DPS Performance Series, 3-position lever, rebound adjust, 52.5x210mm, S2-S6: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
Bremsen
BREMSE VORNE SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm
BREMSE HINTEN SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

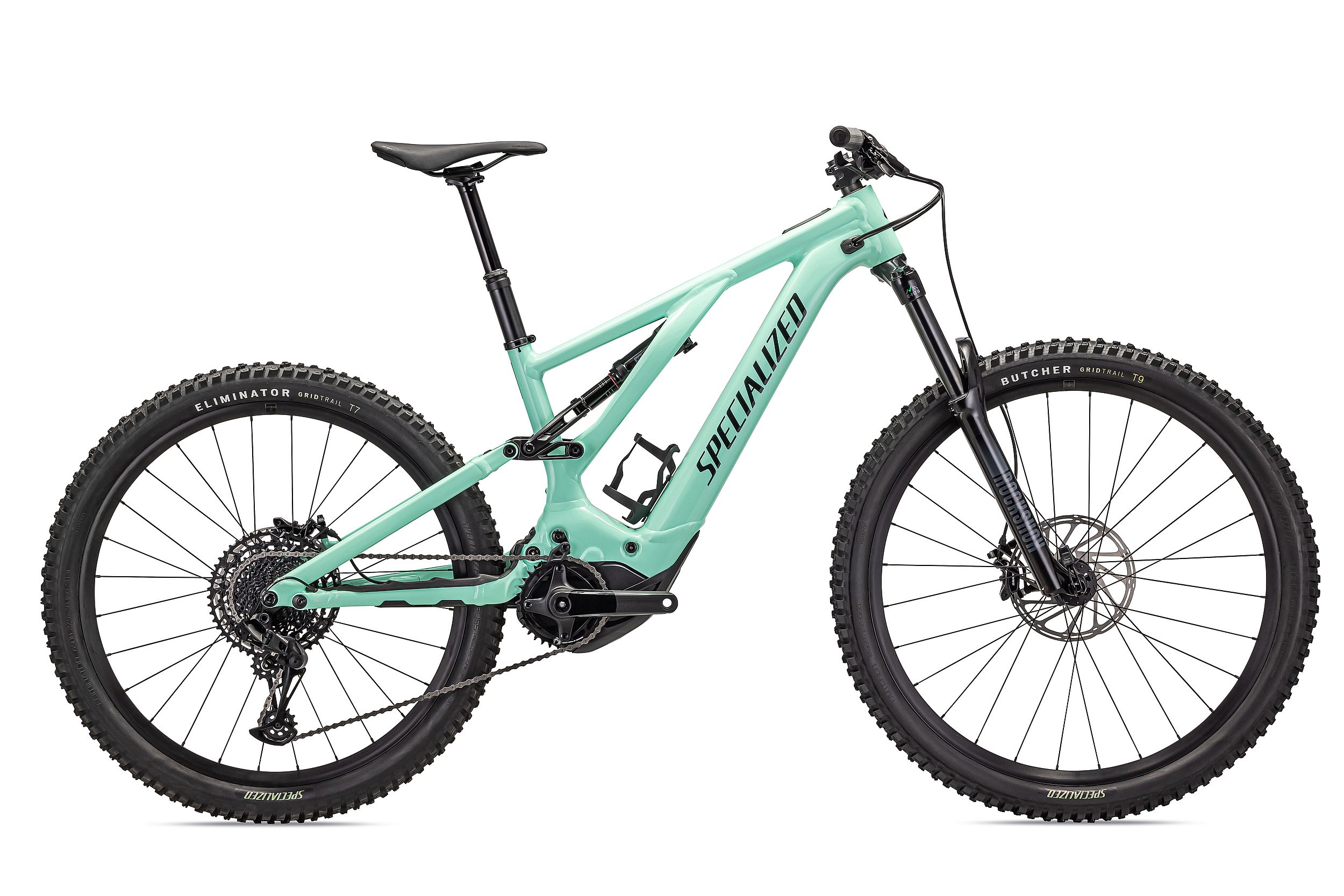

Levo Alloy - Preis 6.000 Euro
Cockpit
VORBAU Alloy Trail Stem, 35mm bar bore
LENKER Alloy, 35mm diameter, 780mm width, 8-degree backsweep, 6-degree upsweep
LENKERBAND Specialized Trail Grips
SATTEL Body Geometry Bridge Saddle, steel rails
SATTELSTÜTZE TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Antrieb
SCHALTWERK SRAM SX Eagle, 12-speed
KASSETTE SRAM NX Eagle PG-1230, 12-speed, 11-50t
KETTE SRAM NX Eagle, 12-speed
SCHALTHEBEL SRAM SL SX Eagle, 12-speed
KURBELGARNITUR Praxis forged M30, custom offset, 160mm
KETTENBLÄTTER SRAM X-Sync Eagle, 104 BCD, 32T, steel
Laufräder
FELGEN Specialized 29, hookless alloy, 30mm inner width, tubeless ready
VORDERRADNABE Alloy, sealed cartridge bearings, 15x110mm thru-axle, 32h
HINTERRADNABE Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
SPEICHEN DT Swiss Industry
SCHLÄUCHE Standard, Presta Valve
VORDERREIFEN Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
HINTERREIFEN Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Rahmenset
RAHMEN
Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
GABEL RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
E-BIKE
MOTOR Specialized Turbo Full Power System 2.2 Motor
DISPLAY Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
LADEGERÄT Custom charger, 42V4A w/ Rosenberger plug
AKKU Specialized M3-500, Integrated battery, 500Wh
Fahrwerk
DÄMPFER RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
Bremsen
BREMSE VORNE SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm
BREMSE HINTEN SRAM Guide RE, 200mm
